EN 4611-008:2012
(Main)Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 008: BP - Nickel plated copper - Operating temperatures, between –65 °C and 150 °C - Dual extruded wall for open applications with additional protection in areas of high vibration, cable flexing and fluid contamination - UV laser printable - Product standard
General Information
- Abstract
This European Standard specifies the characteristics of UV laser printable, nickel plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer XLETFE family for use in the on-board electrical systems of aircraft at operating temperatures between - 65 °C and 150 °C, operating at voltages not exceeding 600 V r.m.s and frequencies not exceeding 2 000 Hz. These cables are suitable for airframe use without additional protection. In case of conflict between this European Standard and other referenced documents the requirements of this European Standard should take precedence.
- Status
- Published
- Publication Date
- 07-Feb-2012
- Withdrawal Date
- 30-Aug-2012
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 23-Sep-2026
Overview
EN 4611-008:2012 is a CEN product standard in the Aerospace series that defines electrical cables of the XLETFE family with nickel‑plated copper conductors and a dual‑extruded XLETFE insulation system. It covers UV‑laser printable, single- and multi‑core cables intended for on‑board aircraft electrical systems, rated for operating temperatures between −65 °C and 150 °C, and for voltages up to 600 V r.m.s. and frequencies up to 2 000 Hz.
Key topics and technical requirements
- Conductor: Nickel‑plated copper per the XLETFE family requirements.
- Insulation / Construction: Dual‑extruded Crosslinked Ethylene Tetra‑Fluoro‑Ethylene (XLETFE) - inner and outer extrusions with specified colours (blue outer; some sizes white or light green).
- Laser markability: Outer insulation of single‑core cables is UV laser printable for durable identification.
- Size range: Typical size codes in the standard include 002, 004, 006, 010 (nominal 0.25–1.0 mm²; AWG equivalents cited).
- Electrical ratings: Maximum 600 V r.m.s., maximum 2 000 Hz.
- Environmental and mechanical performance: Tests and limits include insulation resistance (20 °C and 95 °C), voltage proof, thermal endurance (60 000 h at 150 °C), thermal shock (−65 °C to +260 °C), fluid resistance (maximum 5 % swell), bending/flexure, abrasion and notch propagation requirements. Specific tests are referenced to EN 3475 series test methods.
- Intended use / protection: Suitable for airframe use. In locations where high vibration, cable flexing and fluid contamination occur (for example undercarriage harnesses), the standard notes use with additional protection measures as appropriate.
Applications and who uses this standard
- Aerospace designers and electrical harness engineers specifying on‑board wiring for fixed‑wing and rotorcraft platforms.
- Manufacturers of aircraft wiring, harnesses and cable assemblies requiring durable UV‑markable identification and high resistance to heat, vibration and fluids.
- Quality, procurement and certification teams ensuring compliance with avionics and airframe electrical wiring standards.
- Typical application areas: airframe wiring, harness runs exposed to external environments, service areas near landing gear where flexing, vibration and fluid exposure are common.
Related standards
- EN 4611‑002 (XLETFE family - general requirements)
- EN 2084 (single‑core technical specification)
- EN 2235 (single and multicore screened/jacketed cables)
- EN 3475‑100 (cable test methods)
- EN 9133 (quality management for aerospace standard parts)
Keywords: EN 4611-008:2012, XLETFE, nickel plated copper, UV laser printable, aerospace cables, dual extruded, −65 °C to 150 °C, airframe wiring, cable flexing, vibration protection.
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
BUREAU VERITAS Certification Germany
Bureau Veritas certification in Germany.
Element Materials Technology
Materials testing and product certification.
AQMS Ltd.
AQMS provides ISO certification to SMEs across the UK.
Sponsored listings
Frequently Asked Questions
EN 4611-008:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 008: BP - Nickel plated copper - Operating temperatures, between –65 °C and 150 °C - Dual extruded wall for open applications with additional protection in areas of high vibration, cable flexing and fluid contamination - UV laser printable - Product standard". This standard covers: This European Standard specifies the characteristics of UV laser printable, nickel plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer XLETFE family for use in the on-board electrical systems of aircraft at operating temperatures between - 65 °C and 150 °C, operating at voltages not exceeding 600 V r.m.s and frequencies not exceeding 2 000 Hz. These cables are suitable for airframe use without additional protection. In case of conflict between this European Standard and other referenced documents the requirements of this European Standard should take precedence.
This European Standard specifies the characteristics of UV laser printable, nickel plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer XLETFE family for use in the on-board electrical systems of aircraft at operating temperatures between - 65 °C and 150 °C, operating at voltages not exceeding 600 V r.m.s and frequencies not exceeding 2 000 Hz. These cables are suitable for airframe use without additional protection. In case of conflict between this European Standard and other referenced documents the requirements of this European Standard should take precedence.
EN 4611-008:2012 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4611-008:2012 has the following relationships with other standards: It is inter standard links to EN 3475-808:2002, EN 3475-408:2025, EN 3475-403:2002, EN 3475-508:2007, EN 3475-411:2018, EN 3475-404:2025, EN 3475-418:2019, EN 3475-811:2009, EN 3475-306:2005, EN 3475-505:2023, EN 3475-407:2009, EN 3475-406:2002, EN 3475-203:2006, EN 3475-801:2002, EN 3475-504:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4611-008:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

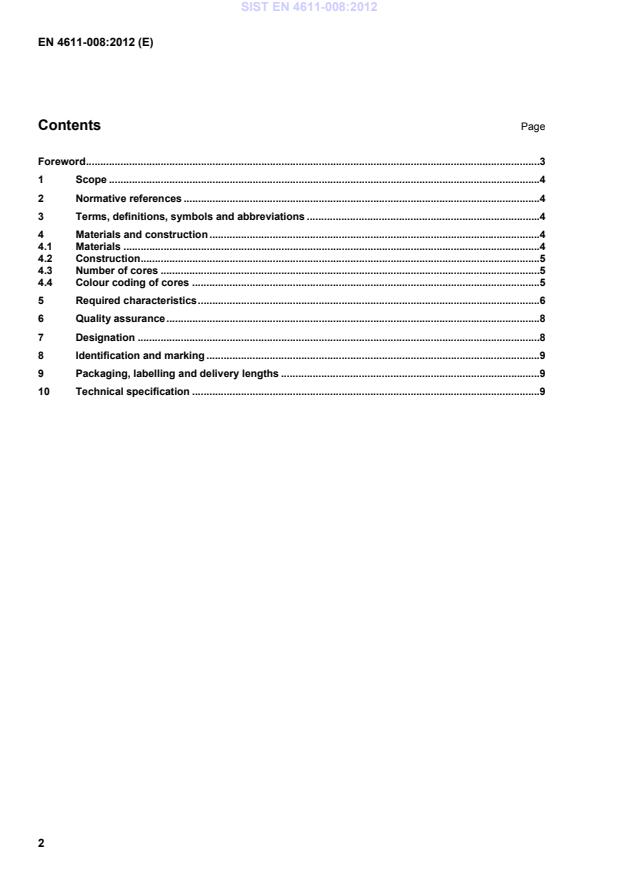

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Ein- und mehradrige elektrische Leitungen für allgemeine Verwendung - XLETFE Familie - Teil 008: BP - Kupfer vernickelt - Betriebstemperaturen zwischen – 65 °C und 150 °C - Doppelt extrudierte Isolierung für externe Verwendung, mit zusätzlichem Schutz in Gebieten mit hoher Vibration (Schwingung), bei Bewegung und bei Kontakt mit Flüssigkeiten - UV-Laser bedruckbar - ProduktnormSérie aérospatiale - Câbles, électriques, d'usage général, mono et multiconducteurs - Famille XLETFE - Partie 008 : BP - Cuivre nickelé - Températures de fonctionnement comprises entre – 65 °C et 150 °C - Fil double isolé pour applications externes avec protection additionnelle pour zones à hautes vibrations, flexion de câbles et pollution des fluides - Marquable au laser UV - Norme de produitAerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 008: BP - Nickel plated copper - Operating temperatures, between – 65 °C and 150 °C - Dual extruded wall for open applications with additional protection in areas of high vibration, cable flexing and fluid contamination - UV laser printable - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4611-008:2012SIST EN 4611-008:2012en,fr,de01-maj-2012SIST EN 4611-008:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4611-008
February 2012 ICS 49.060 English Version
Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 008: BP -Nickel plated copper - Operating temperatures, between -65 °C and 150 °C - Dual extruded wall for open applications with additional protection in areas of high vibration, cable flexing and fluid contamination - UV laser printable - Product standard
Série aérospatiale - Câbles, électriques, d'usage général, mono et multiconducteurs - Famille XLETFE - Partie 008 : BP - Cuivre nickelé - Températures de fonctionnement comprises entre -65 °C et 150 °C - Fil double isolé pour applications externes avec protection additionnelle pour zones à hautes vibrations, flexion de câbles et pollution des fluides - Marquable au laser UV - Norme de produit
Luft- und Raumfahrt - Ein- und mehradrige elektrische Leitungen zur allgemeinen Verwendung, XLETFE-Familie -Teil 008: BP, Kupfer vernickelt, Betriebstemperaturen zwischen -65 °C und 150 °C, doppelt extrudierte Isolierung für offene Anwendungen, mit zusätzlichem Schutz für Bereiche mit hoher Vibration, Bewegung der Leitung und Kontakt mit Flüssigkeiten, UV-Laser bedruckbar - Produktnorm This European Standard was approved by CEN on 17 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4611-008:2012: ESIST EN 4611-008:2012
...
