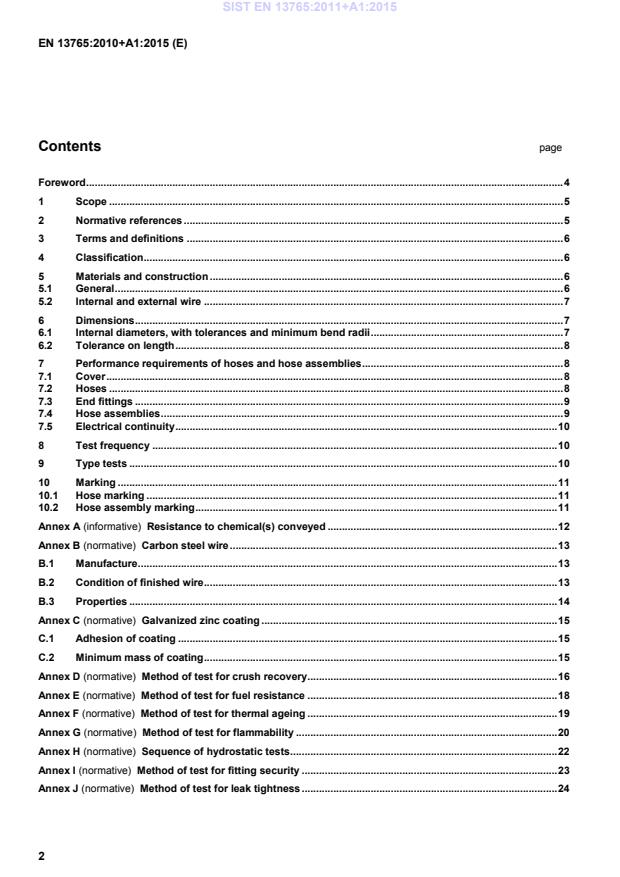

Resistance to chemical(s) conveyed . 12 Annex B (normative)
Carbon steel wire . 13 B.1 Manufacture . 13 B.2 Condition of finished wire . 13 B.3 Properties . 14 Annex C (normative)
Galvanized zinc coating . 15 C.1 Adhesion of coating . 15 C.2 Minimum mass of coating . 15 Annex D (normative)
Method of test for crush recovery . 16 Annex E (normative)
Method of test for fuel resistance . 18 Annex F (normative)
Method of test for thermal ageing . 19 Annex G (normative)
Method of test for flammability . 20 Annex H (normative)
Sequence of hydrostatic tests . 22 Annex I (normative)
Method of test for fitting security . 23 Annex J (normative)
Method of test for leak tightness . 24 SIST EN 13765:2011+A1:2015

Type and routine tests for hoses and hose assemblies . 25 Annex L (informative)
Batch tests for hoses and hose assemblies . 26
2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 590, Automotive fuels - Diesel - Requirements and test methods EN 10088-3:2005, Stainless steels — Part 3: Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes !EN ISO 1043-1:2011, Plastics - Symbols and abbreviated terms - Part 1: Basic polymers and their special characteristics (ISO 1043-1:2011)" EN ISO 1402:2009, Rubber and plastics hoses and hose assemblies - Hydrostatic testing (ISO 1402:2009) EN ISO 2411, Rubber- or plastics-coated fabrics - Determination of coating adhesion (ISO 2411:2000) EN ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of dimensions of hoses and the lengths of hose assemblies (ISO 4671:2007) EN ISO 4672, Rubber and plastics hoses — Sub-ambient temperature flexibility tests (ISO 4672:1997)
1)
1 bar = 0,1 MPa. SIST EN 13765:2011+A1:2015

Type 1 Type 2 Type 3 Type 4 Maximum working pressure (bar) 4 10 14 14 Proof pressure (bar) 6 15 21 21 Minimum burst pressure (bar) 16 40 56 56 Vacuum rating (bar) 0,5 0,9 0,9 0,9 Working temperature range (°C) − 20 to + 60=− 30 to + 80=− 30 to + 80=− 30 to + 150=NOTE 1 bar = 0,1 MPa. 5 Materials and construction 5.1 General Hoses shall be constructed as shown in Figure 1 and shall consist of the following: — an internal wire helix (see 5.2); — a multi-ply wall of layers of films and fabrics made of thermoplastics that in combination give the required properties and provide a complete seal (see also Annex A); — a cover consisting of a fabric with abrasion resistant polymeric coating; SIST EN 13765:2011+A1:2015
