ASTM F2874-20
(Specification)Standard Specification for One Time Use Portable Emergency Fuel Containers (PEFC) for Use by Consumers
Standard Specification for One Time Use Portable Emergency Fuel Containers (PEFC) for Use by Consumers
ABSTRACT
This specification establishes nationally recognized construction, performance and marking standards for portable emergency fuel containers intended for attended transport of fuel and for one time use by consumers. It identifies the requirements the PEFCs need to meet, as well as the markings that need to be indicated on the containers. It then indicates the test methods that ensure the quality of the containers, including the stability test, the drop test, and the vent test.
SCOPE
1.1 This specification establishes nationally recognized construction, performance, and marking standards for portable emergency fuel containers intended for attended transport of fuel and for one time use by consumers. This specification is not for containers intended for unattended storage of fuel.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

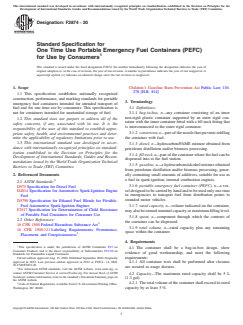

Designation:F2874 −20
Standard Specification for
One Time Use Portable Emergency Fuel Containers (PEFC)
for Use by Consumers
This standard is issued under the fixed designation F2874; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Children’s Gasoline Burn Prevention Act Public Law 110-
278 [H.R. 814]
1.1 This specification establishes nationally recognized
construction, performance, and marking standards for portable
3. Terminology
emergency fuel containers intended for attended transport of
3.1 Definitions:
fuel and for one time use by consumers. This specification is
3.1.1 bag-in-box, n—any container consisting of an inner
not for containers intended for unattended storage of fuel.
non-rigid plastic container supported by an outer rigid con-
1.2 This standard does not purport to address all of the
tainer with the inner container fitted with a fill neck fitting that
safety concerns, if any, associated with its use. It is the
is interconnected to the outer rigid container.
responsibility of the user of this standard to establish appro-
3.1.2 constrictor,n—partofthenozzlethatpreventsrefilling
priate safety, health, and environmental practices and deter-
the container with fuel.
mine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accor-
3.1.3 diesel, n—hydrocarbon/FAME mixture obtained from
dance with internationally recognized principles on standard-
petroleum distillation and/or biomass processing.
ization established in the Decision on Principles for the
3.1.4 fill neck, n—part of the container where the fuel can be
Development of International Standards, Guides and Recom-
dispensed into at the fuel station.
mendations issued by the World Trade Organization Technical
3.1.5 gasoline, n—a hydrocarbons/alcohol mixture obtained
Barriers to Trade (TBT) Committee.
from petroleum distillation and/or biomass processing, gener-
ally containing small amounts of additives, suitable for use as
2. Referenced Documents
a fuel in spark-ignition, internal combustion engines.
2.1 ASTM Standards:
3.1.6 portable emergency fuel container (PEFC), n—a ves-
D975 Specification for Diesel Fuel
sel designed to be carried by hand and to be used only one time
D4814 Specification for Automotive Spark-Ignition Engine
in emergencies to transport fuel from distribution points to
Fuel
stranded motor vehicles.
D5798 Specification for Ethanol Fuel Blends for Flexible-
Fuel Automotive Spark-Ignition Engines
3.1.7 rated capacity, n—volume indicated on the container,
F2517 Specification for Determination of Child Resistance
mayalsobetermednominalcapacityormaximumfillinglevel.
of Portable Fuel Containers for Consumer Use
3.1.8 spout, n—component through which the contents of
2.2 Other References:
the container can be dispensed.
16 CFR 1500 Federal Hazardous Substance Act
3.1.9 total volume, n—rated capacity plus any remaining
16 CFR 1500.121 Labeling Requirements; Prominence,
space within the container.
Placement, and Conspicuousness
4. Requirements
This specification is under the jurisdiction of ASTM Committee F15 on
4.1 The container shall be a bag-in-box design, show
Consumer Products and is the direct responsibility of Subcommittee F15.10 on
evidence of good workmanship, and meet the following
Standards for Flammable Liquid Containers.
requirements:
Current edition approved Aug. 15, 2020. Published September 2020. Originally
approved in 2012. Last previous edition approved in 2012 as F2874 – 12. DOI:
4.1.1 All container tests shall be performed after closures
10.1520/F2874-20.
are secured as usage dictates.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
4.2 Capacity—The maximum rated capacity shall be 5 L
Standards volume information, refer to the standard’s Document Summary page on
(1.3 gal).
the ASTM website.
4.2.1 Thetotalvolumeofthecontainershallexceeditsrated
Code of Federal Regulations, available from U.S. Government Printing Office,
Washington, DC 20402. capacity by at least 5 %.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2874−20
have a statement “Harmful or Fatal if swallowed” and “If swallowed, do
4.3 Stability—Each container shall not tip over when tested
not induce vomiting, call physician immediately,” together.
in accordance with 6.1.
5.3 The following information shall appear on either the top
4.4 Handle—Each container shall be provided with a handle
or two opposing side of all PEFCs included in an ANSI style
that passes the test described in 6.8.
hazard window with ANSI hazard triangle:
4.5 Drop Strength—Containers shall show no evidence of
DANGER
leakage when tested in accordance with 6.2.
EXTREMELY FLAMMABLE
VAPORS CAN EXPLODE
4.6 Internal Pressure—Containers must pass the test de-
HARMFUL OR FATAL IF SWALLOWED
scribed in 6.4 with pressure vent held closed or bypassed.
THIS CONTAINER APPROVED FOR (LIST SPECIFIC FUELS APPROVED
FROM SUBSECTION 6.6)
4.7 Exposure Test—Containers must pass the test described
DO NOT EVER USE FUELS TO IGNITE FIRES
in 6.4 (internal pressure test) after 6.6 for each fuel type tested.
If swallowed, do not induce vomiting, call physician immediately.
4.8 Openings—Openings in containers shall be provided
Keep out of reach of children.
with a means of closure. Avoid prolonged breathing of vapors.
Do not siphon by mouth.
4.8.1 Pour Spout—The fill neck shall accept a pouring spout
Do not store anywhere unattended.
Thepouringspoutshallbedesignedtopermitfueltobepoured
Vapors can be ignited by spark or flame source many feet away.
without leakage. The fill spout must contain a constrictor to Keep away from flame, pilot lights, stoves, heaters, electric motors, and
other sources of ignition.
prevent refilling. The closures on the container shall not leak
Keep container closed.
when tested in accordance with 6.5. The fuel must dispense
5.4 In addition, the following information shall appear on
without spilling when dispensed into a typical on-road vehicle.
either the top or two prominent opposing sides of the container.
All closures must also meet Specification F2517 for the first
Letters shall be ⁄4 in. tall or more and included in an ANSI
use only as applicable. Portable Emergency Fuel Containers
style hazard window with ANSI hazard triangle.
are exempt from the sections of Specification F2517 dealing
with reuse or second use such as to open and close the closure Emergency One Time Use Only
Do Not Attempt to Refill
for 250 cycles or the adult-re-securing portion of the test.
4.8.2 Constrictor—The pouring spout must contain a non- 5.5 In addition, the following information shall appear on
removable restriction that will not allow refilling of the
the top or two prominent opposing sides of the container.
container. The maximum internal diameter of the constrictor Letters shall be ⁄8 in. tall or more and included in an ANSI
shall be 19 mm (0.75 in.). The constrictor must not be
style hazard window with ANSI hazard triangle.
removable by unscrewing and must not be removable by hand
Warning: It is unlawful to store fuel in this container unattended. Filled
without tools in accordance with 6.7. container must be in your possession until drained.
This container is approved for Gasoline, E85 and Diesel (also
...

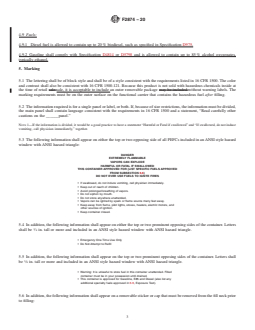

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

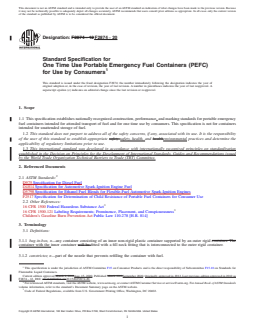

Designation: F2874 − 12 F2874 − 20
Standard Specification for
One Time Use Portable Emergency Fuel Containers (PEFC)
for Use by Consumers
This standard is issued under the fixed designation F2874; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification establishes nationally recognized construction, performance, and marking standards for portable emergency
fuel containers intended for attended transport of fuel and for one time use by consumers. This specification is not for containers
intended for unattended storage of fuel.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D975 Specification for Diesel Fuel
D4814 Specification for Automotive Spark-Ignition Engine Fuel
D5798 Specification for Ethanol Fuel Blends for Flexible-Fuel Automotive Spark-Ignition Engines
F2517 Specification for Determination of Child Resistance of Portable Fuel Containers for Consumer Use
2.2 Other References:
16 CFR 1500 Federal Hazardous Substance Act
16 CFR 1500.121 Labeling Requirements; Prominence, Placement, and Conspicuousness
Children’s Gasoline Burn Prevention Act Public Law 110-278 [H.R. 814]
3. Terminology
3.1 Definitions:
3.1.1 bag-in-box, n—any container consisting of an inner non-rigid plastic container supported by an outer rigid container. The
container with the inner container will be fitted with a fill neck fitting that is interconnected to the outer rigid container.
3.1.2 constrictor, n—part of the nozzle that prevents refilling the container with fuel.
This specification is under the jurisdiction of ASTM Committee F15 on Consumer Products and is the direct responsibility of Subcommittee F15.10 on Standards for
Flammable Liquid Containers.
Current edition approved March 1, 2012Aug. 15, 2020. Published March 2012September 2020. Originally approved in 2012. Last previous edition approved in 2012 as
F2874 – 12. DOI: 10.1520/F2874-12.10.1520/F2874-20.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Code of Federal Regulations, available from U.S. Government Printing Office, Washington, DC 20402.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2874 − 20
3.1.3 diesel, n—hydrocarbon/FAME mixture obtained from petroleum distillation and/or biomass processing.
3.1.4 fill neck, n—part of the container where the fuel can be dispensed into at the fuel station.
3.1.5 gasoline, n—a hydrocarbons/alcohol mixture obtained from petroleum distillation and/or biomass processing, generally
containing small amounts of additives, suitable for use as a fuel in spark-ignition, internal combustion engines.
3.1.6 portable emergency fuel container (PEFC), n—a vessel designed to be carried by hand and to be used only one time in
emergencies to transport fuel from distribution points to stranded motor vehicles.
3.1.7 rated capacity, n—volume indicated on the container, may also be termed nominal capacity or maximum filling level.
3.1.8 spout, n—component through which the contents of the container can be dispensed.
3.1.9 total volume, n—rated capacity plus any remaining space within the container.
4. Requirements
4.1 The container shall be a bag-in-box design, show evidence of good workmanship, and meet the following requirements:
4.1.1 All container tests shall be performed after closures are secured as usage dictates.
4.2 Capacity—The maximum rated capacity shall be 5 L (1.3 gal).
4.2.1 The total volume of the container shall exceed its rated capacity by at least 5 %.
4.3 Stability—Each container shall not tip over when tested in accordance with 6.1.
4.4 Handle—Each container shall be provided with a handle that passes the test described in 6.8.
4.5 Drop Strength—Containers shall show no evidence of leakage when tested in accordance with 6.2.
4.6 Internal Pressure—Containers must pass the test described in 6.4 with pressure vent held closed or bypassed.
4.7 Exposure Test—Containers must pass the test described in 6.4 (internal pressure test) after 6.6 for each fuel type tested.
4.8 Openings—Openings in containers shall be provided with a means of closure.
4.8.1 Pour Spout—The fill neck shall accept a pouring spout The pouring spout shall be designed to permit fuel to be poured
without leakage. The fill spout must contain a constrictor to prevent refilling. The closures on the container shall not leak when
tested in accordance with 6.5. The fuel must dispense without spilling when dispensed into a typical on-road vehicle. All closures
must also meet Specification F2517 for the first use only as applicable. Portable Emergency Fuel Containers are exempt from the
sections of Specification F2517 dealing with reuse or second use such as to open and close the closure for 250 cycles or the
adult-re-securing portion of the test.
4.8.2 Constrictor—The pouring spout must contain a non-removable restriction that will not allow refilling of the container. The
maximum internal diameter of the constrictor shall be 19 mm (0.75 in.). The constrictor must not be removable by unscrewing and
must not be removable by hand without tools in accordance with 6.7.
4.8.3 Pressure Vent—The container with spout installed shall vent between ⁄4 psi and 2 psi per 6.3.
4.8.4 Fill Neck—The fill neck shall have a minimum diameter of 28 mm (1.125 in.) in order to receive a fuel dispensing nozzle.
F2874 − 20
4.9 Fuels:
4.9.1 Diesel fuel is allowed to contain up to 20 % biodiesel, such as specified in Specification D975.
4.9.2 Gasoline shall comply with Specification D4814 or D5798 and is allowed to contain up to 85 % alcohol oxygenates,
typically ethanol.
5. Marking
5.1 The lettering shall be of block style and shall be of a style consistent with the requirements listed in 16 CFR 1500. The color
and contrast shall also be consistent with 16 CFR 1500.121. Because this product is not sold with hazardous chemicals inside at
the time of retail sale sale, it is acceptable to include an outer removable package may be included without warning labels. The
marking requirements must be on the outer surface on the functional carrier that contains the hazardous fuel after filling.
5.2 The information required is for a single panel or label, or both. If, because of size restrictions, the information must be divided,
the main panel shall contain language consistent with the requirements in 16 CFR 1500 and a statement, “Read carefully other
cautions on the ______panel.”
NOTE 1—If the information is divided, it would be a good practice to have a statement “Harmful or Fatal if swallowed” and “If swallowed, do not induce
vomiting, call physician immediately,” together.
5.3 The following information shall appear on either the top or two opposing s
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
