ASTM E2911-23

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: E2911 − 23
Standard Guide for
Relative Intensity Correction of Raman Spectrometers
This standard is issued under the fixed designation E2911; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E2529 Guide for Testing the Resolution of a Raman Spec-
trometer
1.1 This guide is designed to enable the user to correct a
2.2 ANSI Standard:
Raman spectrometer for its relative spectral-intensity response
Z136.1 Safe Use of Lasers
function using NIST Standard Reference Materials in the
224X series (currently SRMs 2241, 2242, 2243, 2244, 2245,
3. Terminology
2246), or a calibrated irradiance source. This relative intensity
3.1 Definitions—Terminology used in this practice con-
correction procedure will enable the intercomparison of Raman
spectra acquired from differing instruments, excitation forms to the definitions in Terminology E131.
wavelengths, and laboratories.
4. Significance and Use
1.2 The values stated in SI units are to be regarded as
4.1 Generally, Raman spectra measured using grating-based
standard. No other units of measurement are included in this
dispersive or Fourier transform Raman spectrometers have not
standard.
been corrected for the instrumental response (spectral respon-
1.3 Because of the significant dangers associated with the
sivity of the detection system). Raman spectra obtained with
use of lasers, ANSI Z136.1 or suitable regional standards
different instruments may show significant variations in the
should be followed in conjunction with this practice.
measured relative peak intensities of a sample compound. This
1.4 This standard does not purport to address all of the
is mainly as a result of differences in their wavelength-
safety concerns, if any, associated with its use. It is the
dependent optical transmission and detector efficiencies. These
responsibility of the user of this standard to establish appro-
variations can be particularly large when widely different laser
priate safety, health, and environmental practices and deter-
excitation wavelengths are used, but can occur when the same
mine the applicability of regulatory limitations prior to use.
laser excitation is used and spectra of the same compound are
1.5 This international standard was developed in accor-
compared between instruments. This is illustrated in Fig. 1,
dance with internationally recognized principles on standard-
which shows the uncorrected luminescence spectrum of SRM
ization established in the Decision on Principles for the
2241, acquired upon four different commercially available
Development of International Standards, Guides and Recom-
Raman spectrometers operating with 785 nm laser excitation.
mendations issued by the World Trade Organization Technical
Instrumental response variations can also occur on the same
Barriers to Trade (TBT) Committee.
instrument after a component change or service work has been
performed. Each spectrometer, due to its unique combination
2. Referenced Documents
of filters, grating, collection optics and detector response, has a
2.1 ASTM Standards:
very unique spectral response. The spectrometer dependent
E131 Terminology Relating to Molecular Spectroscopy
spectral response will of course also affect the shape of Raman
E1840 Guide for Raman Shift Standards for Spectrometer
spectra acquired upon these systems. The shape of this re-
Calibration
sponse is not to be construed as either “good or bad” but is the
result of design considerations by the spectrometer manufac-
turer. For instance, as shown in Fig. 1, spectral coverage can
This guide is under the jurisdiction of ASTM Committee E13 on Molecular
Spectroscopy and Separation Science and is the direct responsibility of Subcom- vary considerably between spectrometer systems. This is
mittee E13.08 on Raman Spectroscopy.
typically a deliberate tradeoff in spectrometer design, where
Current edition approved April 1, 2023. Published May 2023. Originally
spectral coverage is sacrificed for enhanced spectral resolution.
approved in 2013. Last previous edition approved in 2013 as E2911 – 13 which was
withdrawn July 2022 and reinstated in April 2023. DOI: 10.1520/E2911–23.
4.2 Variations in spectral peak intensities can be mostly
Trademark of and available from NIST Office of Reference Materials, 100
corrected through calibration of the Raman intensity (y) axis.
Bureau Drive, Stop 2300, Gaithersburg, MD 20899-2300. http://www.nist.gov/srm.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E2911 − 23
FIG. 1 SRM 2241 Measured on Four Commercial Raman Spectrometers Utilizing 785 nm Excitation
The conventional method of calibration of the spectral re- glasses can be used in a variety of sampling configurations and
sponse of a Raman spectrometer is through the use of a they require no additional instrumentation. The glasses are
National Metrology Institute (NMI), for example, NIST, trace- photostable and unlike primary calibration sources, may not
able calibrated irradiance source. Such lamps have a defined require periodic recalibration. NIST provides a series of
spectral output of intensity versus wavelength and procedures fluorescent glasses that may be used to calibrate the intensity
for their use have been published (1) . However, intensity axis of Raman spectrometers. A mathematical equation, which
calibration using a white-light source can present experimental is a description of the corrected emission, is provided with each
difficulties, especially for routine analytical work. Calibrated glass. The operator uses this mathematical relation with a
tungsten halogen lamps have a limited lifetime and require measurement of the glass on their spectrometer to produce a
periodic recalibration. These lamps are often mounted in an system correction curve.
integrating sphere to eliminate polarization effects and provide
4.4 This guide describes the steps required to produce a
uniform source irradiance. In practice, these sources can be
relative intensity correction curve for a Raman spectrometer
difficult to align with the variety of sampling arrangements that
using a calibrated standard source or a NIST SRM and a means
are now typical with Raman spectrometers, especially micro-
to validate the correction.
scope based systems and process Raman analyzers where
electrical safety concerns persist in hazardous areas. The
5. Reagents
advantage of a standard lamp is that it can be used for multiple
5.1 Standard Reference Materials, SRM 2241, SRM 2242,
excitation wavelengths.
SRM 2243, SRM 2244, SRM 2245, and SRM 2246 are
4.3 The spectra of materials that luminesce with irradiation
luminescent glass standards designed and calibrated at NIST
can be corrected for relative luminescence intensity as a for the relative intensity correction of Raman spectrometers
function of emission wavelength using a calibrated Raman
operating with excitation laser wavelengths of 785 nm,
spectrometer. An irradiance source, traceable to the SI, can be 532 nm, 488 nm/514.5 nm, 1064 nm, 632.8 nm and 830 nm,
used to calibrate the spectrometer. Several groups have pro-
respectively (3-5). The corrected luminescence spectra of each
posed these transfer standards to calibrate both Raman and is shown in Fig. 2.
fluorescence spectrometers (1-6). The use of a luminescent
5.2 Raman shift reagents (see Guide E1840).
glass material has the advantage that the Raman excitation
laser is used to excite the luminescence emission and this
6. Raman Shift Verification (X-Axis)
emission is measured in the same position as the sample. These
6.1 Verification of the calibration of the spectrometer’s
-1
x-axis in Raman shift wavenumbers (υ cm ) is necessary
before intensity correction of the y-axis is performed. The
The boldface numbers in parentheses refer to the list of references at the end of
this standard. Raman shift axis is calculated from Eq 1:
E2911 − 23

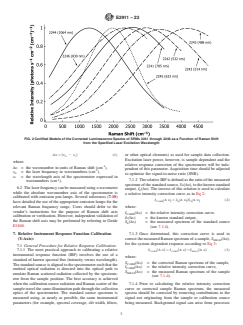

FIG. 2 Certified Models of the Corrected Luminescence Spectra of SRMs 2241 through 2246 as a Function of Raman Shift
from the Specified Laser Excitation Wavelength
∆υ 5 ~υ 2 υ ! (1) or other optical elements) as used for sample data collection.
0 s
Excitation laser power, however, is sample dependent and the
where:
relative response correction of the spectrometer will be inde-
-1
υ = the wavenumber in units of Raman shift (cm ),
pendent of this parameter. Acquisition time should be adjusted
-1
υ = the laser frequency in wavenumbers (cm ),
to optimize the signal-to-noise ratio (SNR).
υ = the wavelength axis of the spectrometer expressed in
s
-1 7.1.2 The relative IRF is defined as the ratio of the measured
wavenumbers (cm ),
spectrum of the standard source, S (υ ), to the known standard
L
6.2 The laser frequency can be measured using a wavemeter
output, I (υ ). The inverse of this relation is used to calculate
L
while the absolute wavenumber axis of the spectrometer is
a relative intensity correction curve as in Eq 2:
calibrated with emission pen lamps. Several references (7-10)
I ~∆ υ! 5 I ~∆ υ!⁄S ~∆ υ! (2)
CORR L L
have detailed the use of the appropriate emission lamps for the
relevant Raman frequency range. Users should defer to the
where:
vendor’s instructions for the purpose of Raman shift axis
I (υ ) = the relative intensity correction curve,
CORR
calibration or verification. However, independent validation of
I (υ ) = the known standard output,
L
the Raman shift axis may be performed by referring to Guide
S (υ ) = the measured spectrum of the standard source
L
E1840.
(see 7.1.4).
7. Relative Instrument Response Function Calibration 7.1.3 Once determined, this correction curve is used to
correct the measured Raman spectrum of a sample, S (υ ),
(Y-Axis):
MEAS
for the system dependent response according to Eq 3:
7.1 General Procedure for Relative Response Calibration:
S ∆ υ 5 I ∆ υ × S ∆ υ (3)
7.1.1 The most practical approach to calibrating a relative ~ ! ~ ! ~ !
CORR CORR MEAS
instrumental response function (IRF) involves the use of a
where:
standard of known spectral flux (intensity versus wavelength).
S (υ ) = the corrected Raman spectrum of the sample,
CORR
The standard source is aligned to the spectrometer such that the
I (υ ) = the relative intensity correction curve,
CORR
emitted optical radiation is directed into the optical path to
S (υ ) = the measured Raman spectrum of the sample
MEAS
emulate Raman scattered radiation collected by the spectrom-
(see 7.1.4).
eter from the sample position. The best accuracy is achieved
when the calibration source radiation and Raman scatter of the 7.1.4 Prior to calculating the relative intensity correction
sample travel the same illumination path through the collection curve or corrected sample Raman spectrum, the measured
optics of the spectrometer. The standard source spectrum is spectra should be corrected by removing contributions to the
measured using, as nearly as possible, the same instrumental signal not originating from the sample or calibration source
parameters (for example, spectral coverage, slit width, filters, being measured. Background signal can arise from processes
E2911 − 23
independent of light incident on the detector, such as detector 7.1.7 Conventional units used for Raman spectrometers
-1 -1 -1
bias and thermal charge generation. Correction for these employing photon counting detectors are photons sec (cm )
on a relative scale. Additional units relating to area and solid
processes is often referred to as dark correction or dark
angle may also be included. With the excitation laser wave-
subtraction. Corrections for other sources of background
length known, the photon flux in terms of Raman shift, Ф (υ ),
p
interference, such as ambient lighting or luminescence from
may be calculated for a spectrometer system. This approach is
optical components in a system, can also be performed. These
utilized for the corrected luminescence spectra of the NIST
procedures may be combined into a single measurement and
SRM series for relative Raman intensity correction.
automated during the spectral acquisition. Throughout the
remainder of this guide, the term “background” will be used 7.2 Relative Response Calibration using NIST SRMs:
generally to refer to spectral background contributions both 7.2.1 SRMs 2241 through 2246 are glass artifact standards
that transfer a relative irradiance calibration from a NIST
dependent and independent of light incident on the detector.
certified spectral irradiance source to a user’s spectrometer.
The suitability of a particular approach to background correc-
Under laser excitation at the specified wavelength the SRM
tion depends on instrumentation as well as application and,
luminescence provides a source of known relative spectral
therefore, a specific procedure cannot be universally prescribed
intensity, described by a certified mathematical model, over the
(see 7.4.4.1). For the calibration source, the measured spectrum
spectral range of certification. Shown in Fig. 2 are the certified
is typically corrected by subtraction of a background spectrum
models of the corrected luminescence spectra of SRMs 2241
recorded by blocking or removing the calibration source or
through 2246 as a function of Raman shift from the specified
leaving the detector shutter closed and measuring a spectrum
laser excitation wavelength. The corrected spectra of these
using the same acquisition time used to measure the calibration
SRMs were determined by the general response calibration
source. The measured sample spectrum is similarly corrected
procedure described above using a NIST calibrated primary
by subtraction of a background spectrum; however, since the
standard source and/or calibrated black-body furnace radiators.
spectrum depends on integration time, this will typically be
With the SRM a relative intensity correction curve is generated
different from the background spectrum used for
...
