Standard Guide for Determination of the Thermal Resistance of Low-Density Blanket-Type Mineral Fiber Insulation

SIGNIFICANCE AND USE
4.1 This guide provides a method to determine the thermal performance of low-density blanket-type insulation. It may be used for the purposes of quality assurance, certification, or research.
4.2 The thermal resistance of low-density insulation depends significantly on the density, the thickness, and thermal conductivity. Typical low-density, mineral-fiber insulation for buildings may vary in density from one specimen to the next.
4.3 Thermal tests are time-consuming in comparison with density and thickness measurements. Low-density insulation material is produced in large quantities. A typical lot would be a truckload or the amount necessary to insulate a house.
4.4 The relatively low unit cost of this product and the relatively high cost of thermal resistance testing makes it cost-effective to test only a small percentage of the product area. It is recommended that there be a determination of the density that is representative of a lot by the measurement of the average density of a statistically representative sampling.
4.5 A fewer number of thermal measurements are then made to determine the apparent thermal conductivity at the previously determined representative density. The essential significance of this guide is that a large lot of variable material is best characterized by: (a) determining the representative density, and by (b) determining the thermal property at this representative density with a small number of thermal measurements.
4.6 Building insulation products are commonly manufactured in thicknesses ranging from 19 to 330 mm (0.75 to 13 in.) inclusive. Experimental work has verified that there is a dependence of λapp on thickness for some low density materials.
4.7 The upper limit of test thickness for specimens evaluated using Test Methods C177, C518, and C1114 is established based upon the apparatus design, overall dimensions, expected thermal resistivity level and desired target accuracy. The testing organization is responsible f...
SCOPE
1.1 This guide describes the calculation and interpolation of a thermal resistance value for low-density blanket-type insulation material at a particular density and thickness having been selected as representative of the product. It requires measured values of this average density and thickness, as well as apparent thermal conductivity values determined by either Test Method C177, C518, or C1114.
1.2 This guide applies to a density range for mineral-fiber material of roughly 6.4 to 48 kg/m3  (0.4 to 3.0 lb/ft3). It is primarily intended to apply to low-density, mineral-fiber mass insulation batts and blankets, exclusive of any membrane facings. Apparent thermal conductivity data for these products are commonly reported at a mean temperature of 23.9°C (75°F) and a hot-to-cold plate temperature difference of 27.8°C (50°F) or 22.2°C (40°F).
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Published
Publication Date
28-Feb-2017
Technical Committee
Drafting Committee
Current Stage
Ref Project

Relations

Guide
ASTM C653-17 - Standard Guide for Determination of the Thermal Resistance of Low-Density Blanket-Type Mineral Fiber Insulation
English language
6 pages
sale 15% off
sale 15% off
Guide
REDLINE ASTM C653-17 - Standard Guide for Determination of the Thermal Resistance of Low-Density Blanket-Type Mineral Fiber Insulation
English language
6 pages
sale 15% off
sale 15% off

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

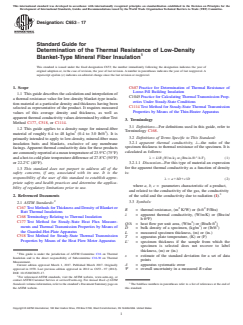

Designation: C653 − 17
Standard Guide for
Determination of the Thermal Resistance of Low-Density
Blanket-Type Mineral Fiber Insulation
This standard is issued under the fixed designation C653; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C687Practice for Determination of Thermal Resistance of
Loose-Fill Building Insulation
1.1 This guide describes the calculation and interpolation of
C1045Practice for Calculating Thermal Transmission Prop-
a thermal resistance value for low-density blanket-type insula-
erties Under Steady-State Conditions
tion material at a particular density and thickness having been
C1114Test Method for Steady-State Thermal Transmission
selected as representative of the product. It requires measured
Properties by Means of the Thin-Heater Apparatus
values of this average density and thickness, as well as
apparentthermalconductivityvaluesdeterminedbyeitherTest
3. Terminology
Method C177, C518,or C1114.
3.1 Definitions—For definitions used in this guide, refer to
1.2 This guide applies to a density range for mineral-fiber
Terminology C168.
3 3
material of roughly 6.4 to 48 kg/m (0.4 to 3.0 lb/ft ). It is
3.2 Definitions of Terms Specific to This Standard:
primarily intended to apply to low-density, mineral-fiber mass
3.2.1 apparent thermal conductivity, λ—the ratio of the
insulation batts and blankets, exclusive of any membrane
specimen thickness to thermal resistance of the specimen. It is
facings.Apparent thermal conductivity data for these products
calculated as follows:
arecommonlyreportedatameantemperatureof23.9°C(75°F)
andahot-to-coldplatetemperaturedifferenceof27.8°C(50°F)
λ 5 L/R W/m·k or Btu·in./ft ·h·F (1)
~ ! ~ !
or 22.2°C (40°F).
3.2.1.1 Discussion—For this type of material an expression
for the apparent thermal conductivity as a function of density
1.3 This standard does not purport to address all of the
is:
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
λ 5 a1bD1c/D (2)
priate safety and health practices and determine the applica-
where a, b, c = parameters characteristic of a product,
bility of regulatory limitations prior to use.
and related to the conductivity of the gas, the conductivity
of the solid and the conductivity due to radiation (1).
2. Referenced Documents
3.3 Symbols:
2.1 ASTM Standards:
C167Test Methods forThickness and Density of Blanket or
2 2
R = thermal resistance, (m K/W) or (h·ft F/Btu)
Batt Thermal Insulations
λ = apparent thermal conductivity, (W/m·K) or (Btu·in/
C168Terminology Relating to Thermal Insulation
h·ft F)
C177Test Method for Steady-State Heat Flux Measure- 2 2
Q/A = heat flow per unit area, (W/m ) or (Btu/h·ft )
ments and Thermal Transmission Properties by Means of 3 3
D = bulk density of a specimen, (kg/m ) or (lb/ft )
the Guarded-Hot-Plate Apparatus
L = measured specimen thickness, (m) or (in.)
C518Test Method for Steady-State Thermal Transmission
T = apparatus plate temperature, (K) or (F)
Properties by Means of the Heat Flow Meter Apparatus
L' = specimen thickness if the sample from which the
specimen is selected does not recover to label
thickness, (m) or (in.)
This guide is under the jurisdiction of ASTM Committee C16 on Thermal
s = estimate of the standard deviation for a set of data
Insulation and is the direct responsibility of Subcommittee C16.30 on Thermal
points
Measurement.
∆ = apparatus systematic error
Current edition approved March 1, 2017. Published March 2017. Originally
approved in 1970. Last previous edition approved in 2012 as C653–97 (2012).
Ψ = overall uncertainty in a measured R-value
DOI: 10.1520/C0653-17.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The boldface numbers in parentheses refer to a list of references at the end of
the ASTM website. this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C653 − 17
3.3.1 Subscripts: density, D . Density is determined by using Test Method
av
C167; take care to avoid the use of damaged material.
= signifies average of a lot
av
5.2 In order to account for the variation in λ-value due to
= refers to hot surface
H
product density variability, measure a minimum of three “λ
= refers to cold surface
C
versus D” data points on three different samples. This repre-
= refers to test specimen
T
sentsninedatapointsforthe“λversus D”curve.Again,this“λ
= refers to nominal property for the product, as shown on
N
versus D” curve is developed to determine the λ-value at a
the product label
= refers to a set of data points particular representative density characteristic of a lot of
i
= refers to a particular specimen material.
s
5.3 The size of a lot of material to be characterized, the
4. Significance and Use
amount of material measured for the representative values of
4.1 This guide provides a method to determine the thermal
density and thickness, and the frequency of tests all depend on
performance of low-density blanket-type insulation. It may be
theuser’sneeds,whichcouldberelatedtoqualityassuranceby
used for the purposes of quality assurance, certification, or
a manufacturer, certification, or research.
research.
4.2 The thermal resistance of low-density insulation de- 6. Procedure
pends significantly on the density, the thickness, and thermal
6.1 This procedure uses nine {λ; D} data points all
i i
conductivity. Typical low-density, mineral-fiber insulation for
measured at the same hot and cold plate temperatures, to
buildings may vary in density from one specimen to the next.
establish an interpolation equation for the determination of the
4.3 Thermal tests are time-consuming in comparison with λ-value at the average density, D . That is, the subscript i
av
th
density and thickness measurements. Low-density insulation refers to the i test point. The D is the average density of the
I
material is produced in large quantities.Atypical lot would be specimen within the apparatus meter-area. The thermal resis-
a truckload or the amount necessary to insulate a house. tance at L and D is as follows:
av av
4.4 The relatively low unit cost of this product and the R 5 L /λ (3)
av av av
relatively high cost of thermal resistance testing makes it
6.2 Before the set of “apparent thermal conductivity versus
cost-effective to test only a small percentage of the product
test density (λ versus D)” data points can be measured on an
i i
area. It is recommended that there be a determination of the
apparatus, it is necessary to choose the test densities and
densitythatisrepresentativeofalotbythemeasurementofthe
thicknesses. Three procedures for this choice are described in
average density of a statistically representative sampling.
Annex A1.
4.5 Afewernumberofthermalmeasurementsarethenmade 6.2.1 Procedure A—Asingletestspecimeniscompressedto
obtain different densities (A1.2). This procedure offers the
to determine the apparent thermal conductivity at the previ-
ously determined representative density. The essential signifi- advantage of less test time to obtain three test points.
canceofthisguideisthatalargelotofvariablematerialisbest 6.2.2 Procedure B—A different specimen is used for each
characterized by: (a) determining the representative density, test point (A1.3). This method has the advantage of a better
statistical sampling with regard to material variability.
and by (b) determining the thermal property at this represen-
tative density with a small number of thermal measurements. 6.2.3 Procedure C—Testat D therebyeliminatingtheneed
av
for an interpolation (A1.4).
4.6 Building insulation products are commonly manufac-
turedinthicknessesrangingfrom19to330mm(0.75to13in.) 6.3 Obtain a test value for λ at each of the three densities.
inclusive. Experimental work has verified that there is a These three sets of test values result in three equations of the
dependence of λ on thickness for some low density materi- form of Eq 2 in 3.2.1. These are solved simultaneously to
app
als. determine the values of a , b , and c corresponding to
s s s
specimen s (see A2.1.2).
4.7 The upper limit of test thickness for specimens evalu-
atedusingTestMethodsC177,C518,and C1114isestablished
NOTE 1—Small errors in the measured values of λ will result in large
variations in the values of a, b, and c. Even so, the uncertainty of the
based upon the apparatus design, overall dimensions, expected
interpolated value of λ will be comparable to the measured error in λ.
thermal resistivity level and desired target accuracy. The
testing organization is responsible for applying these restric- 6.4 Whenever possible, calculate running averages for the
tions when evaluating a product to ensure that the results meet
specific product lot based on a number N equal to 20 or more
applicable product labels and any existing regulatory require- sets of product curve parameters (a;b;c ). Remember from
s s s
ments (2).
6.3 that each of these sets requires three test points (see
A2.1.3).
4.8 Extrapolation of the apparent thermal conductivity or
6.4.1 A larger number N results in more consistent values
the thermal resistance beyond the ranges of thickness or
for a, b,and c;asmaller Nrepresentsamorecurrentdatabase.
density of products tested is not valid.
6.5 In 6.3 a set of parameter values was calculated, and in
5. Sampling
6.4 a running average was calculated. This section describes
5.1 For low-density mineral-fiber insulation, a lot sample how to obtain an interpolation curve (or equivalently a set of
size of 75 to 150 ft is recommended to determine the average interpolation curve parameters) for the next sample, s, when it

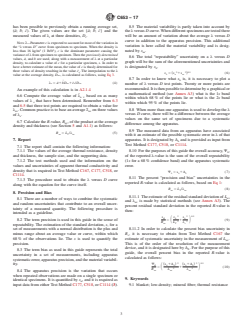

C653 − 17
has been possible to previously obtain a running average set, 8.5 The material variability is partly taken into account by
¯ ¯
(a¯; b; c¯). The given values are the set {a¯; b; c¯} and the the λversus Dcurve.Whendifferentspecimensaretestedthere
measured values of λ at three densities, D. will be an amount of variation about the average λ versus D
i i
curve in addition to the apparatus precision. This additional
NOTE2—Parameter cisexpectedtoaccountformostofthevariationin
variation is here called the material variability and is desig-
the “λ versus D” curve from specimen to specimen. When the density is
3 3
nated by s .
less than 16 kg/m (1 lb/ft ), c is the dominant parameter causing the
m
variance of λ from specimen to specimen.Then the previously determined
8.6 The total “repeatability” uncertainty on a λ versus D
values, a¯, and b are used, along with a measurement of λ at a particular
graph will be the sum of the aforementioned uncertainties and
density, to calculate a value of c for a particular specimen, s. In order to
is designated by s .
have a better estimate of the mean, the value of c is thusly determined for
λ
three values of density resulting in the value c¯ . The interpolation to the λ
s 2 2 0.5
s 5 ~s 1s ! (6)
λ a m
value at the average density, D , is calculated as follows, using Eq 3.
av
8.7 In order to know what s is, it is necessary to plot a
λ
¯
λ 5 a¯ 1bD 1c¯ /D (4)
s av s av
number of λ versus D test points. Twenty or more points are
recommended.Itisthenpossibletodeterminebyagraphicalor
An example of this calculation is in A2.1.4
a mathematical method (see Annex A3) what is the 1s band
¯
6.6 Compute the average value of λ based on as many
av
within which 68% of the points lie or what is the 2s band
values of λ that have been determined. Remember from 6.3
s
within which 95% of the points lie.
and 6.5 that three test points are required to obtain a value for
¯
8.8 When more than one apparatus is used to develop the λ
λ . Common practice is to base an average λ on three values
av av
versus D curve, there will be a difference between the average
of λ .
s
values on the same set of specimens due to a systematic
6.7 Calculate the R-value, R , of the product at the average
av
difference among the apparatus.
density and thickness (see Section 5 and A1.1) as follows:
8.9 The measured data from an apparatus have associated
R 5 L /λ (5)
av T av
with it an estimate of the possible systematic error in λ of that
7. Report apparatus. It is designated by ∆ and is provided as input from
λ
Test Method C177, C518,or C1114.
7.1 The report shall contain the following information:
7.1.1 The values of the average thermal resistance, density 8.10 Forthepurposesofthisguidetheoverallaccuracy, Ψ ,
λ
of the reported λ-value is the sum of the overall repeatability
and thickness, the sample size, and the supporting data.
7.1.2 The test methods used and the information on the (1s for a 68% confidence band) and the apparatus systematic
error.
values and uncertainties of apparent thermal conductivity and
density that is required in Test Method C167, C177, C518,or
Ψ 5 s 1∆ (7)
λ λ λ
C1114.
8.11 The percent “precision and bias” uncertainties in the
7.1.3 The procedure used to obtain the λ versus D curve
reported R-value is calculated as follows, based on Eq 1:
along with the equation for the curve itself.
R 5 L /λ (8)
av T av
8. Precision and Bias
8.11.1 Theestimateoftheresidualstandarddeviationof L
av
8.1 There are a number of ways to combine the systematic
and λ is made by statistical methods (see Annex A3). The
av
and random uncertainties that contribute to an overall uncer-
percent residual standard deviation in the reported R-value is
tainty of a measured quantity. The following procedure is
then:
intended as a guideline.
2 2 0.5
s s s
R L λ
8.2 The term precision is used in this guide in the sense of
5 1 (9)
S D
2 2
R L λ
av T r
repeatability. The estimation of the standard deviation, s, for a
set of measurements with a normal distribution is the plus and 8.11.2 In order to calculate the percent bias uncertainty in
minus range about an average value or curve, within which R , it is necessary to obtain from Test Method C167 the
v
68% of the observations lie. The s is used to quantify the estimate of systematic uncertainty in the measurement of L .
av
precision. This is of the order of the resolution of the measurement
device, and it is designated here by ∆ . For the purpose of this
L
8.3 The term bias as used in this
...


This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: C653 − 97 (Reapproved 2012) C653 − 17
Standard Guide for
Determination of the Thermal Resistance of Low-Density
Blanket-Type Mineral Fiber Insulation
This standard is issued under the fixed designation C653; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guide describes the calculation and interpolation of a thermal resistance value for low-density blanket-type insulation
material at a particular density and thickness having been selected as representative of the product. It requires measured values of
this average density and thickness, as well as apparent thermal conductivity values determined by either Test Method C177, C518,
or C1114.
3 3
1.2 This guide applies to a density range for mineral-fiber material of roughly 6.4 to 48 kg/m (0.4 to 3.0 lb/ft ). It is primarily
intended to apply to low-density, mineral-fiber mass insulation batts and blankets, exclusive of any membrane facings. Apparent
thermal conductivity data for these products are commonly reported at a mean temperature of 23.9°C (75°F) and a hot-to-cold plate
temperature difference of 27.8°C (50°F) or 22.2°C (40°F).
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2.1 ASTM Standards:
C167 Test Methods for Thickness and Density of Blanket or Batt Thermal Insulations
C168 Terminology Relating to Thermal Insulation
C177 Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the
Guarded-Hot-Plate Apparatus
C518 Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
C687 Practice for Determination of Thermal Resistance of Loose-Fill Building Insulation
C1045 Practice for Calculating Thermal Transmission Properties Under Steady-State Conditions
C1114 Test Method for Steady-State Thermal Transmission Properties by Means of the Thin-Heater Apparatus
3. Terminology
3.1 Definitions—For definitions used in this guide, refer to Terminology C168.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 apparent thermal conductivity, λ—the ratio of the specimen thickness to thermal resistance of the specimen. It is calculated
as follows:
λ5 L/R ~W/m·k! or ~Btu·in./ft ·h·F! (1)
This guide is under the jurisdiction of ASTM Committee C16 on Thermal Insulation and is the direct responsibility of Subcommittee C16.30 on Thermal Measurement.
Current edition approved March 1, 2012March 1, 2017. Published August 2012March 2017. Originally approved in 1970. Last previous edition approved in 20072012
as C653 – 97 (2012).(2007). DOI: 10.1520/C0653-97R12.10.1520/C0653-17.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3.2.1.1 Discussion—
For this type of material an expression for the apparent thermal conductivity as a function of density is:
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C653 − 17
λ5 a1bD1c/D (2)
where a, b, c = parameters characteristic of a product, and related to the conductivity of the gas, the conductivity of the
solid and the conductivity due to radiation.radiation (1)).
3.3 Symbols:
2 2
R = thermal resistance, (m K/W) or (h·ft F/Btu)
λ = apparent thermal conductivity, (W/m·K) or (Btu·in/h·ft F)
2 2
Q/A = heat flow per unit area, (W/m ) or (Btu/h·ft )
3 3
D = bulk density of a specimen, (kg/m ) or (lb/ft )
L = measured specimen thickness, (m) or (in.)
T = apparatus plate temperature, (K) or (F)
L' = specimen thickness if the sample from which the specimen is selected does not recover to label thickness, (m) or (in.)
s = estimate of the standard deviation for a set of data points
Δ = apparatus systematic error
Ψ = overall uncertainty in a measured R-value
3.3.1 Subscripts:
= signifies average of a lot
av
= refers to hot surface
H
= refers to cold surface
C
= refers to test specimen
T
= refers to nominal property for the product, as shown on the product label
N
= refers to a set of data points
i
= refers to a particular specimen
s
4. Significance and Use
4.1 This guide provides a method to determine the thermal performance of low-density blanket-type insulation. It may be used
for the purposes of quality assurance, certification, or research.
4.2 The thermal resistance of low-density insulation depends significantly on the density, the thickness, and thermal
conductivity. Typical low-density, mineral-fiber insulation for buildings may vary in density from one specimen to the next.
4.3 Thermal tests are time-consuming in comparison with density and thickness measurements. Low-density insulation material
is produced in large quantities. A typical lot would be a truckload or the amount necessary to insulate a house.
4.4 The relatively low unit cost of this product and the relatively high cost of thermal resistance testing makes it cost-effective
to test only a small percentage of the product area. It is recommended that there be a determination of the density that is
representative of a lot by the measurement of the average density of a statistically representative sampling.
4.5 A fewer number of thermal measurements are then made to determine the apparent thermal conductivity at the previously
determined representative density. The essential significance of this guide is that a large lot of variable material is best characterized
by: (a) determining the representative density, and by (b) determining the thermal property at this representative density with a
small number of thermal measurements.
4.6 Building insulation products are commonly manufactured in thicknesses ranging from 19 to 330 mm (0.75 to 13 in.)
inclusive. Experimental work has verified that there is a dependence of λ on thickness for some low density materials.
app
4.7 The upper limit of test thickness for specimens evaluated using Test Methods C177, C518, and C1114 is established based
upon the apparatus design, overall dimensions, expected thermal resistivity level and desired target accuracy. The testing
organization is responsible for applying these restrictions when evaluating a product to ensure that the results meet applicable
product labels and any existing regulatory requirements.requirements (2)).
4.8 Extrapolation of the apparent thermal conductivity or the thermal resistance beyond the ranges of thickness or density of
products tested is not valid.
5. Sampling
5.1 For low-density mineral-fiber insulation, a lot sample size of 75 to 150 ft is recommended to determine the average density,
D . Density is determined by using Test Method C167; take care to avoid the use of damaged material.
av
5.2 In order to account for the variation in λ-value due to product density variability, measure a minimum of three “λ versus
D” data points on three different samples. This represents nine data points for the “λ versus D” curve. Again, this “λ versus D”
curve is developed to determine the λ-value at a particular representative density characteristic of a lot of material.
The boldface numbers in parentheses refer to a list of references at the end of this standard.
C653 − 17
5.3 The size of a lot of material to be characterized, the amount of material measured for the representative values of density
and thickness, and the frequency of tests all depend on the user’s needs, which could be related to quality assurance by a
manufacturer, certification, or research.
6. Procedure
6.1 This procedure uses nine {λ ; D } data points all measured at the same hot and cold plate temperatures, to establish an
i i
th
interpolation equation for the determination of the λ-value at the average density, D . That is, the subscript i refers to the i test
av
point. The D is the average density of the specimen within the apparatus meter-area. The thermal resistance at L and D is as
iI av av
follows:
R 5 L /λ (3)
av av av
6.2 Before the set of “apparent thermal conductivity versus test density (λ versus D )” data points can be measured on an
i i
apparatus, it is necessary to choose the test densities and thicknesses. Three procedures for this choice are described in Annex A1.
6.2.1 Procedure A—A single test specimen is compressed to obtain different densities (A1.2). This procedure offers the
advantage of less test time to obtain three test points.
6.2.2 Procedure B—A different specimen is used for each test point (A1.3). This method has the advantage of a better statistical
sampling with regard to material variability.
6.2.3 Procedure C—Test at D thereby eliminating the need for an interpolation (A1.4).
av
6.3 Obtain a test value for λ at each of the three densities. These three sets of test values result in three equations of the form
of Eq 2 in 3.2.1. These are solved simultaneously to determine the values of a , b , and c corresponding to specimen s (see A2.1.2).
s s s
NOTE 1—Small errors in the measured values of λ will result in large variations in the values of a, b, and c. Even so, the uncertainty of the interpolated
value of λ will be comparable to the measured error in λ.
6.4 Whenever possible, calculate running averages for the specific product lot based on a number N equal to 20 or more sets
of product curve parameters (a ; b ; c ). Remember from 6.3 that each of these sets requires three test points (see A2.1.3).
s s s
6.4.1 A larger number N results in more consistent values for a, b, and c; a smaller N represents a more current data base.
6.5 In 6.3 a set of parameter values was calculated, and in 6.4 a running average was calculated. This section describes how
to obtain an interpolation curve (or equivalently a set of interpolation curve parameters) for the next sample, s, when it has been
possible to previously obtain a running average set, (a¯; b¯; c¯). The given values are the set {a¯; b¯; c¯} and the measured values
of λ at three densities, D .
i i
NOTE 2—Parameter c is expected to account for most of the variation in the “λ versus D” curve from specimen to specimen. When the density is less
3 3
than 16 kg/m (1 lb/ft ), c is the dominant parameter causing the variance of λ from specimen to specimen. Then the previously determined values, a¯,
and b are used, along with a measurement of λ at a particular density, to calculate a value of c for a particular specimen, s. In order to have a better estimate
of the mean, the value of c is thusly determined for three values of density resulting in the value c¯ . The interpolation to the λ value at the average density,
s
D , is calculated as follows, using Eq 3.
av
¯
λ 5 a¯ 1bD 1c¯ /D (4)
s av s av
¯
λ 5 a¯ 1bD 1c¯ /D (4)
s av s av
An example of this calculation is in A2.1.4
¯
6.6 Compute the average value of λ based on as many values of λ that have been determined. Remember from 6.3 and 6.5
a v s
¯
that three test points are required to obtain a value for λ . Common practice is to base an average λ on three values of λ .
av av s
6.7 Calculate the R-value, R , of the product at the average density and thickness (see Section 5 and A1.1) as follows:
av
R 5 L /λ (5)
av T av
7. Report
7.1 The report shall contain the following information:
7.1.1 The values of the average thermal resistance, density and thickness, the sample size, and the supporting data.
7.1.2 The test methods used and the information on the values and uncertainties of apparent thermal conductivity and density
that is required in Test Method C167, C177, C518, or C1114.
7.1.3 The procedure used to obtain the λ versus D curve along with the equation for the curve itself.
8. Precision and Bias
8.1 There are a number of ways to combine the systematic and random uncertainties that contribute to an overall uncertainty
of a measured quantity. The following procedure is intended as a guideline.
8.2 The term precision is used in this guide in the sense of repeatability. The estimation of the standard deviation, s, for a set
of measurements with a normal distribution is the plus and minus range about an average value or curve, within which 68 % of
the observations lie. The s is used to quantify the precision.
C653 − 17
8.3 The term bias as used in this guide represents the total uncertainty in a set of measurements, including apparatus systematic
error, apparatus precision, and the material variability.
8.4 The apparatus precision is the variation that occurs when repeated observations are made on a single specimen or identical
specimens. It is quantified by s , and it is required as input data from either Test Method C177, C518, or C1114. (3)).
a
8.5 The material variability is partly taken into account by the λ versus D curve. When different specimens are tested there will
be an amount of variation about the average λ versus D curve in addition to the apparatus precision. This additional variation is
here called the material variability and is designated by s .
m
8.6 The total “repeatability” uncertainty on a λ versus D graph will be the sum of the aforementioned uncertainties and is
designated by s .
λ
2 2 0.5
s 5 s 1s (6)
~ !
λ a m
8.7 In order to know what s is, it is necessary to plot a number of λ versus D test points. Twenty or more points are
λ
recommended. It is then possible to determine by a graphical or a mathematical method (see Annex A3) what is the 1s band within
which 68 % of the points lie or what is the 2s band within which 95 % of the points lie.
8.8 When more than one apparatus is used to develop the λ versus D curve, there will be a difference between the average values
on the same set of specimens due to a systematic difference among the apparatus.
8.9 The measured data from an apparatus have associated with it an estimate of the possible systematic error in λ of that
apparatus. It is designated by Δ and is provided as input from Test Method C177, C518, or C1114.
λ
8.10 For the p
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
